05–08 Fleetwood Bounder Excursion Expedition Discovery Providence RV Instrument Dash Gauges REPAIR SERVICE
No reviews
Regular price$399.99
/

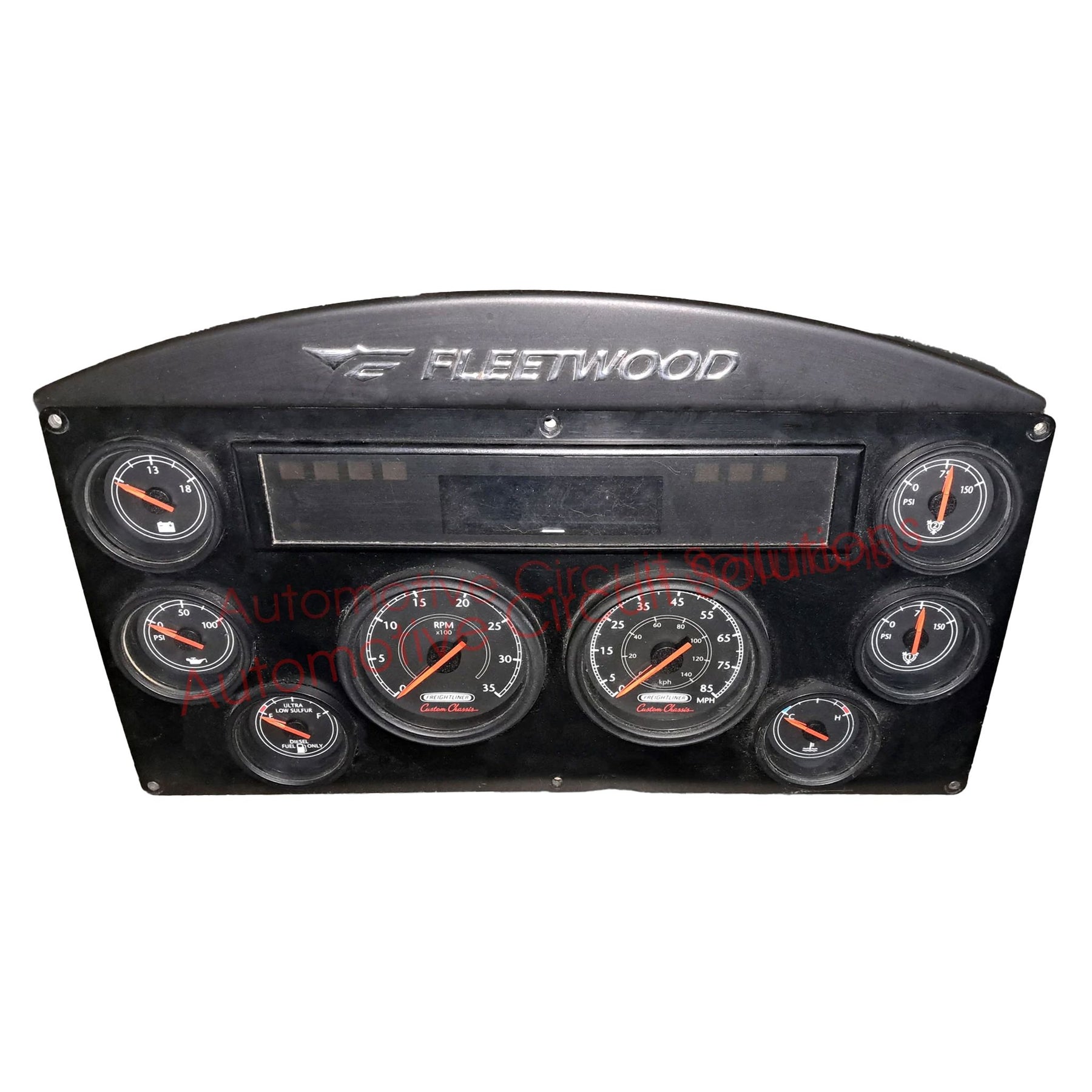

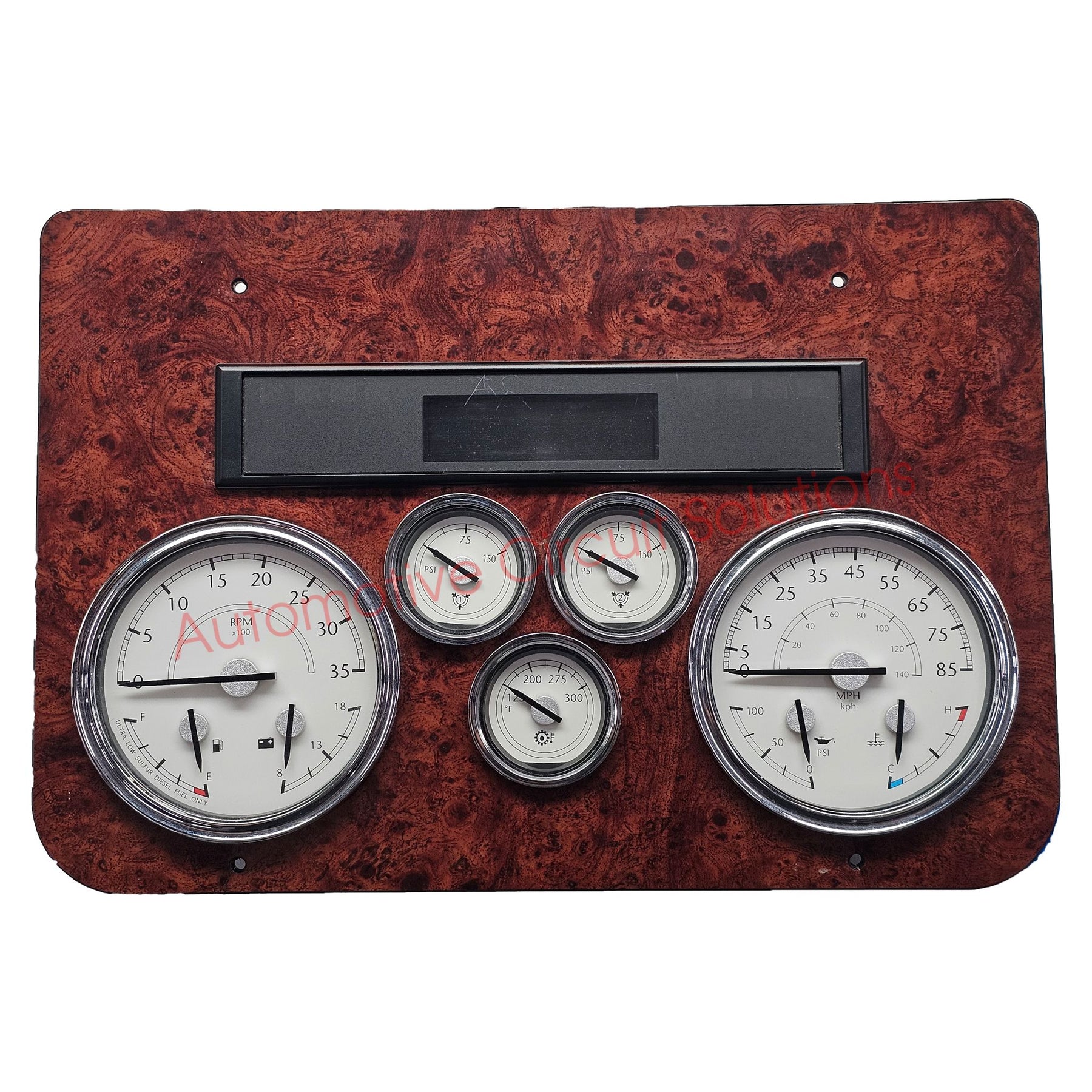

Freightliner XC Fleetwood Gauge Cluster Repair Service — Medallion Instrumentation Systems
This is a repair service, not a part for sale. Purchase this listing, ship your Medallion gauge cluster to us, and we will return it fully repaired within 1–2 business days of receipt.
Not sure if this is your cluster? If your gauges look similar to ours and you are experiencing similar issues, send it in — we will evaluate it and let you know if it applies to this service.
Problems We Fix
- Individual faulty gauges One or more gauges dead, stuck, or reading incorrectly while others function normally.
- All gauges intermittent — on and off All gauges drop out intermittently, then comes back on there own.
- One gauge taking all the gauges down A single failed gauge causes the rest of the cluster to go to 0 or become unresponsive.
Even if only one of the above issues is present, we will repair all known failure points to ensure a complete and long-lasting repair.
Not Covered by This Service
- Cracked or broken display lens Cosmetic lens damage is not covered under this repair service.
- Physical damage from prior repair attempts Contact us before ordering if the cluster has been previously opened or damaged.
- Faults caused by external wiring, sensors, or sending units Gauge issues caused by faulty senders or wiring outside the cluster are not resolved by this service.
- Severely corroded or water-damaged boards Contact us before ordering if the cluster has visible corrosion or has been exposed to moisture.
Not sure if the cluster is the root cause? Contact us before purchasing.
Everything Included
-
✓Pre-repair diagnostic Full evaluation of the cluster to identify all failure points before work begins.
-
✓Gauge repair — stepper motors and internal components Root cause of individual, intermittent, or cascading gauge failures repaired. Not just the failed component — every known weak point is addressed.
-
✓Needle recalibration All gauges recalibrated to factory spec after repair.
-
✓Post-repair quality test Cluster fully tested before it leaves our shop.
-
✓Return shipping with tracking Tracking number sent same day your cluster ships back to you.
-
✓Limited lifetime warranty All repair work is covered by a limited lifetime warranty (backlighting covered 1 year).
Compatible Vehicles
Fleetwood Discovery 2003–2010
Fleetwood Expedition 2005–2010
Fleetwood Bounder 2003–2010
Fleetwood Excursion 2003–2015
Fleetwood Providence 2003–2010
All of the above are built on the Freightliner XC chassis with Medallion Instrumentation Systems clusters. Your cluster must visually match our product photos and the part numbers listed below. If your part number differs or your motorhome is not listed, contact us — if your cluster looks similar and has similar issues, we may still be able to help. Browse our full catalog of services here.
Before you send your cluster: Gauge faults on the Freightliner XC chassis can originate from the cluster itself or from external sending units, wiring, or sensors. Individual gauge faults caused by a faulty fuel sender, oil pressure sender, or coolant temperature sender will not be resolved by repairing the cluster. Intermittent cluster dropout, however, is typically an internal cluster fault. If you are unsure whether the cluster or an external component is the root cause, contact us before purchasing. We do not issue refunds if the cluster was not the source of the problem.
How It Works
1
Purchase this service You will receive our mailing address and packing instructions after checkout.
2
Ship your cluster to us Pack it securely and include your order number and a description of the issues — which gauges are affected, whether the problem is intermittent, and how long it has been occurring.
3
We repair and test within 1–2 business days of receipt All known failure points addressed, needles recalibrated, and cluster fully tested before return.
4
We ship it back with tracking Tracking number sent same day your cluster ships.
Warranty
Repair Work
Limited lifetime warranty on all work performed.
Backlighting
One year — LEDs and bulbs have a finite lifespan. Replacement available after for a nominal fee.
Return Shipping
Covered both ways for the first 3 months after receipt. After that, customer is responsible for shipping to us.
Transferability
Non-transferable. Original buyer only. A warranty number is issued for tracking.
Terms and Conditions
- This sale is for a repair service, not a part. We do not have any for sale.
- You are responsible for packaging your part securely so it will not be damaged in shipping. If we receive it damaged we will always send you a picture.
- Very rarely, we may encounter an issue that we are unable to repair. In this case, we can send it back to you or you will have the option to donate it to us for parts.
- If there is a problem with your cluster once you receive it back, contact us. We will work hard to resolve any problem.
- For complete terms of service and privacy policy click HERE.
Fleetwood Discovery gauge cluster repair, Fleetwood Expedition cluster repair, Fleetwood Bounder gauge cluster repair, Fleetwood Excursion cluster repair, Fleetwood Providence gauge cluster repair, Freightliner XC Medallion cluster repair, Medallion Instrumentation Systems gauge cluster, 2003 2004 2005 2006 2007 2008 2009 2010 Fleetwood Discovery cluster, 2005 2006 2007 2008 2009 2010 Fleetwood Expedition cluster, 2003 2004 2005 2006 2007 2008 2009 2010 Fleetwood Bounder cluster, 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 Fleetwood Excursion cluster, 2003 2004 2005 2006 2007 2008 2009 2010 Fleetwood Providence cluster, Fleetwood motorhome gauge cluster intermittent, motorhome gauges dropping out, one gauge taking all gauges down Freightliner XC, Fleetwood cluster mail in repair, W22-00008-000 W22-00052-001 W22-00052-002 W22-00052-003 W22-00052-004 W22-00052-011 W22-00052-012 W22-00037-005 W22-00043-002 W22-00055-006
OEM Part Numbers (for reference — we are not limited to these):
W22-00008-000, W22-00052-001, W22-00052-002, W22-00052-003, W22-00052-004, W22-00052-011, W22-00052-012, W22-00037-005, W22-00043-002, W22-00055-006, W22-00021-001, W22-00008-057, W22-00008-056, W22-00012-014, W22-00011-017
Step 1
After purchase, carefully remove the unit from your vehicle.
At this time please take pictures of your unit for your records. (This is to help in the case it gets damaged or scratched up)
Step 2
Securely pack your unit, using a suitable box so that your unit will not get damaged during shipment. Include the following Information:
- Your Name
- Include Order # (on the box)
- Return Address
- Contact Phone Number
- Description of Issues with your unit
- Vehicle Year, Make, and Model
- LED COLOR (if you are purchasing a service that includes LEDs)
Packaging Guidelines: Please wrap your item securely with at least 2 inches of bubble wrap or protective cushioning on all sides. Please note that we are not responsible for parts damaged during transit; if your package arrives broken, we will contact you.
Step 3
(At Your Expense) Send Your Unit To:
Automotive Circuit Solutions
226 S Dysart Ave
Springfield, MO 65802
Step 4.
When we receive the unit. We will inspect, repair and send it back.
