Caterpillar TL943 TL642 TL1055 TL1255 Telehandler Gauge Cluster REPAIR SERVICE
No reviews
Regular price$349.99
/
Caterpillar TL Series Telehandler Instrument Cluster Repair
This is a repair service, not a part for sale. Purchase this listing, ship your cluster to us, and we will return it fully repaired within 2–4 business days of receipt.
Problems We Fix
- Faded or burnt LCD screen
- Fuel gauge not working or inaccurate
- Oil pressure not working or inaccurate
- Temperature gauge not working or inaccurate
Even if only one of the above issues is present, we will repair all known failure points to ensure a complete and long-lasting repair.
Not Covered
- Physical damage to housing or lens
- Damage caused by prior repair attempts
- Severely corroded clusters
- Hour meter correction
Previously attempted repairs may incur additional charges up to $50. Contact us beforehand if applicable.
Everything Included
-
✓Pre-repair diagnostic Cluster powered up and fully inspected before any work begins.
-
✓LCD screen repair Faded and burnt LCD restored to full visibility.
-
✓Full gauge repair Fuel, tachometer, and temperature gauge faults corrected.
-
✓All known failure points replaced Not just the failed component — every known weak point is addressed.
-
✓Post-repair functional test Fully verified before it ships back to you.
-
✓Return shipping with tracking Tracking number sent same day it ships.
-
✓Lifetime warranty Parts and labor on all work performed. Warranty number issued for tracking.
Compatible Equipment
TL Series — 2002–2008
Cat TL642 — 2002–2008
Cat TL943 — 2002–2008
Cat TL1055 — 2003–2008
Cat TL1255 — 2004–2008
TLC Series — 2007–2013
Cat TL642C — 2007–2013
Cat TL943C — 2007–2013
Cat TL1055C — 2007–2013
Cat TL1255C — 2007–2013

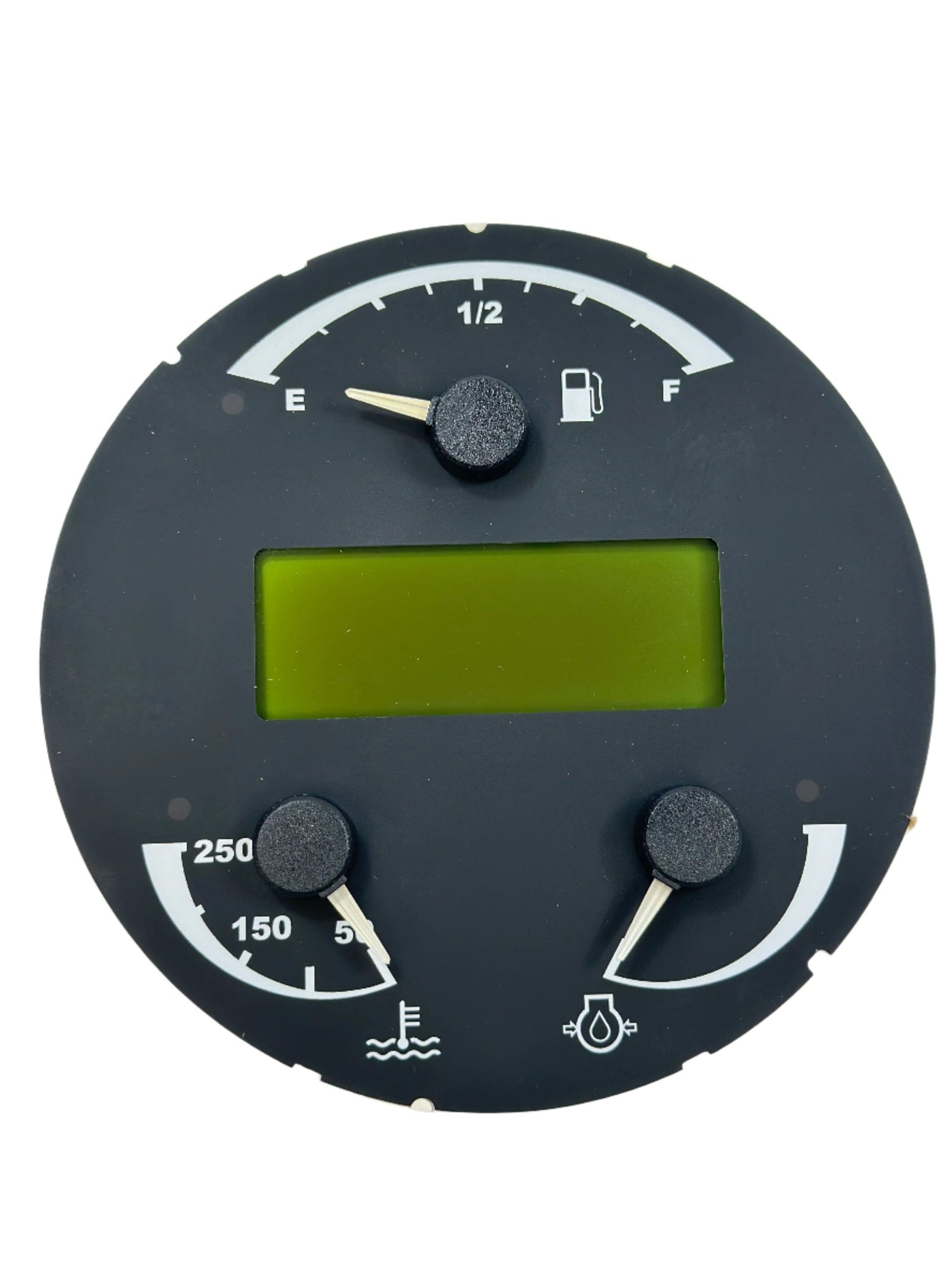

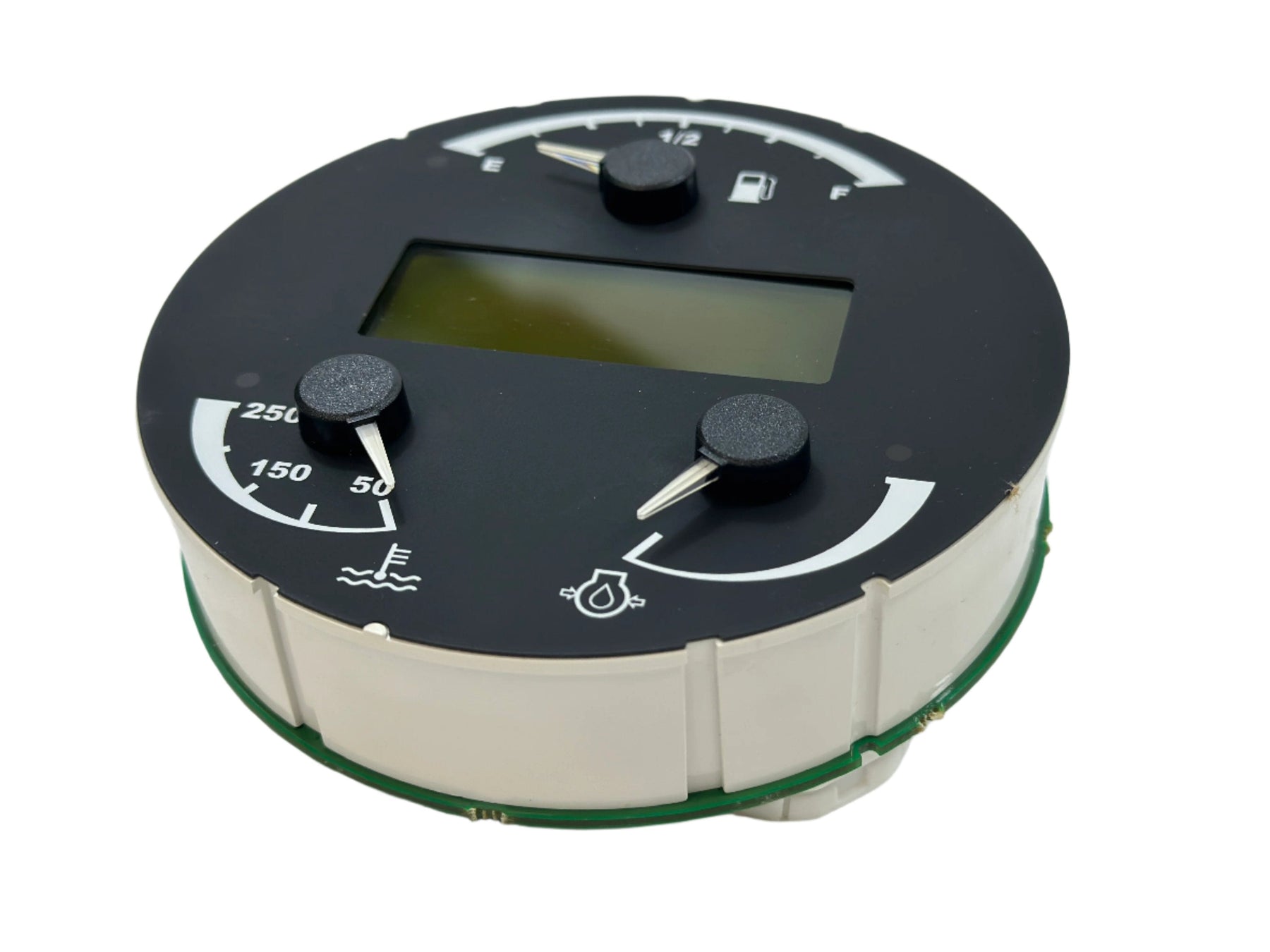

Important: Your cluster must visually match our photos. If yours looks different, contact us with your machine's model and year before ordering.
1418212
294-3814
388-9158
5P-8280
3208390
316-8043
7Y5500
1060172
5K9443
3T9100
7S4179
4W-2215
3331338
333-1338
Don't see your machine? Browse our full catalog of repair services here.
Diagnose your machine before sending. Gauge faults and LCD issues on these Caterpillar clusters can sometimes originate from a sensor failure, a wiring harness fault, or a CAN bus communication issue rather than the cluster itself. If the cluster tests normally on the bench, we will still perform a full service covering all known failure points. However, if the problem returns after repair, the root cause may be elsewhere in the machine. We test every cluster before return and do not issue refunds if you later determine the cluster was not the cause. Not sure? Contact us before sending and we will help you work through the diagnosis.
How It Works
1
Purchase this service You will receive our mailing address and packing instructions.
2
Ship your cluster to us Pack it securely and include your order number and a description of the issue.
3
We repair and test within 2–4 business days of receipt Full service, all known failure points addressed, quality verified before return.
4
We ship it back with tracking Tracking number sent same day it leaves our shop.
Warranty
Repair Work
Limited lifetime warranty on all work performed
Return Shipping
Covered both ways for the first 3 months after receipt
Transferability
Non-transferable. Original buyer only. Warranty number issued for tracking
Hour Meter
Your machine's hour reading will not be affected by this repair
Terms and Conditions
- This sale is for a repair service, not a part. We do not have any for sale.
- You are responsible for packaging your part securely so it will not be damaged in shipping. If we receive it damaged we will always send you a picture.
- Very rarely, we may encounter an issue that we are unable to repair. In this case, we can send it back to you or you will have the option to donate it to us for parts.
- If there is a problem with your cluster once you receive it back, contact us. We will work hard to resolve any problem.
- For complete terms of service and privacy policy click HERE.
Caterpillar TL642 cluster repair, Cat TL943 instrument cluster, Cat TL1055 gauge cluster LCD faded, Cat TL1255 cluster repair, Caterpillar TL642C cluster, Cat TL943C instrument cluster repair, Cat TL1055C gauge cluster, Cat TL1255C cluster LCD burnt, Caterpillar telehandler instrument cluster repair, Cat TL series fuel gauge tachometer temperature gauge not working, 1418212 294-3814 388-9158 5P-8280 3208390 316-8043 7Y5500 1060172
Step 1
After purchase, carefully remove the unit from your vehicle.
At this time please take pictures of your unit for your records. (This is to help in the case it gets damaged or scratched up)
Step 2
Securely pack your unit, using a suitable box so that your unit will not get damaged during shipment. Include the following Information:
- Your Name
- Include Order # (on the box)
- Return Address
- Contact Phone Number
- Description of Issues with your unit
- Vehicle Year, Make, and Model
- LED COLOR (if you are purchasing a service that includes LEDs)
Step 3
(At Your Expense) Send Your Unit To:
Automotive Circuit Solutions
226 S Dysart Ave
Springfield, MO 65802
Step 4.
When we receive the unit. We will inspect, repair and send it back within 24 hours of receiving it.
